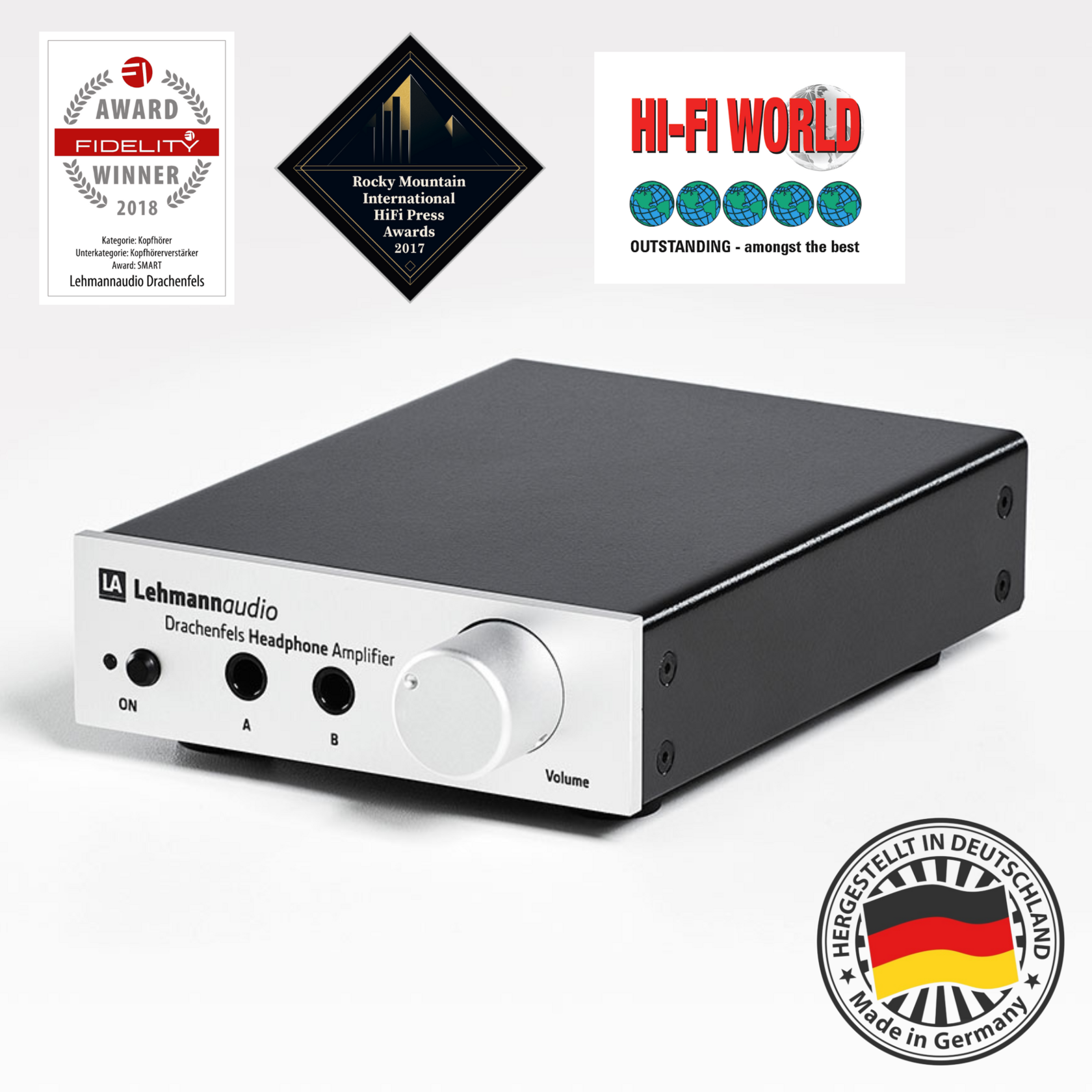

Lehmannaudio Drachenfels

Experience the future-proof Drachenfels, designed to meet the demands of sustainability-conscious music enthusiasts. With its modular design and state-of-the-art components, this amplifier offers long-term perspectives for those seeking uncompromising quality. Whether you prefer streaming via WLAN or Ethernet, connecting Bluetooth sources, or using traditional digital players, the Drachenfels has the perfect solution. Its readily available modular PC boards can swiftly adapt to any requirement, even as new digital standards emerge. Simply swap the module and rear panel to enjoy a seamless upgrade experience!

Featuring a practice-oriented gain of 12dB, the Drachenfels eliminates the need for a gain switch, thanks to its ALPS Blue Velvet potentiometer with exceptional synchronism and an ultra-low-noise circuit. The front power switch reduces standby power consumption to an eco-friendly level of under 1W. Furthermore, its compact dimensions offer versatile placement options for the Drachenfels. Whether used as a headphone amplifier or preamp, immerse yourself in the joy of immersive music listening.

Input impedance: 47 kOhms

Maximum gain: 12 dB with maximum potentiometer setting

Frequency Response: 10 Hz (-0.3 dB) to 35 kHz (-1 dB)

Signal to noise ratio: > 85 dB at gain 0 dB

THD: < 0,006 % at 18 mW/330 ohms

Channel separation: > 80 dB at 10 kHz

Output power: 330 ohms/110 mW 33 ohms/180 mW

Output impedance: pre-out 105 ohms phones out 5 ohms

Connectors audio: Neutrik headphone sockets with gold-plated contacts 1 x pre-out 2 x phones out Line in/pre-out: RCA

Power consumption: app. 4 W through external wide range wall power supply (without any optional pc board)

Product Type: Headphone amplifier

lwh: 160x120x43

Weight: 500g
