Gold Note TUBE-1012

Gold Note
6390,00
Add Warmth to Your Electronics

Elevate your Gold Note electronics to new heights with the TUBE-1012, featuring advanced 12-valve Class A output stages. These upgrades deliver enhanced control, definition, and an exceptional level of realism in your music playback.

For those who cherish the warm, rich sound of valves and seek to maximize the system’s performance, TUBE-1012 is a perfect choice. Designed to work seamlessly with Gold Note electronics, they offer a natural sound and a high-end listening experience.

The unique Totem-Pole design, incorporating six independent audio stages per valve, ensures ultra-wide bandwidth response and ultra-low distortion for a pure audio signal. With new rear panel audio inputs, these valve output stages can connect to two sources simultaneously: the Tube input for Gold Note sources and the line input for other brands. The input can be easily selected from the front panel, providing maximum convenience and ease of use.
Inputs and Outputs
Specifications

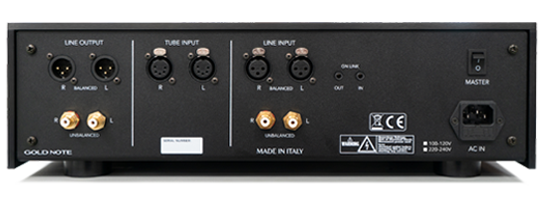

Inputs and Outputs

INPUTS TUBE
1x XLR Line In
1x RCA Line In
1x Tube In (5-pole XLR for Gold Note sources only)

Specifications

Max Input: RCA 6Vrms; XLR 12Vrms

Max Output: RCA 8Vrms; XLR 16Vrms

Output Impedance: <600Ω

Gain: 2dB

Recommended Load: >10kΩ

Tubes: 12 valves 6n1p

THD+N: 0.0028% @ 1kHz – 1.736V

S/N: >100dB @ 1kHz – 1.736V

Finishes: Gold, Black, Silver

Product Type: Amplifier

lwh: 430x135x370

Weight: 16000g
