4,995.00$
10 in stock
The Reference Desktop DAC and Headphone Amplifier by Chord Electronics
Precision. Power. Perfection.
Developed from the multi-award-winning Hugo 2, the Hugo TT 2 is bigger, more advanced, and engineered for absolute sonic purity. Designed for desktop and reference-grade systems, it redefines performance standards for table-top DACs.
Beyond Expectation
With support for 768 kHz PCM and DSD 512 playback, Hugo TT 2 delivers breathtaking realism, immense dynamic range, and astonishing musical detail — second only to the legendary DAVE.
Order Yours Today
Experience the future of high-end sound with Chord Hugo TT 2.
MGY OÜ is the official distributor of Chord Electronics in Estonia, Latvia, and Lithuania.
Prepare to be amazed by the radical transformation of Hugo TT 2, meticulously redesigned by Chief Designer John Franks. With 5 times the processing power of its predecessor, the original Hugo TT, and double that of the award-winning Hugo 2, this masterpiece harnesses over 20 years of digital development by Rob Watts, utilizing the latest cutting-edge technology.
Delving deeper into its technological prowess, Hugo TT 2 employs a powerful Xilinx Artix 7 FPGA, custom-coded by Chord Electronics’ very own Rob Watts, with an astounding 86x 208MHz cores operating in parallel. This advanced FPGA enables the creation of a groundbreaking 16FS WTA 1 filter with an impressive 98,304-taps, surpassing the 49,152-tap capability of its acclaimed sibling, Hugo 2. Moreover, Hugo TT 2 features an upgraded 10-element design, perfectly synchronized with the enhanced FPGA and code, resulting in unparalleled audio reproduction.
To minimize distortion, Hugo TT 2 incorporates a brand-new high-power discreet output stage and integrates second-order noise-shaping between the DAC output and filter. Furthermore, improvements have been made to the power delivery system. Departing from the Li-Po battery power supply of its predecessor, Hugo TT 2 adopts six super capacitors capable of delivering massive linear dynamic currents when the music demands it, with a peak output of 5A and 9.3V RMS.
Materials: Precision machined aluminium casing with steel ball bearing buttons, gloss black acrylic signal window, glass viewing portal, and dot matrix display. Available in a choice of two colours – silver, and satin black
Tap length filter: 98,304-tap 16FS WTA 1 – 10 element design

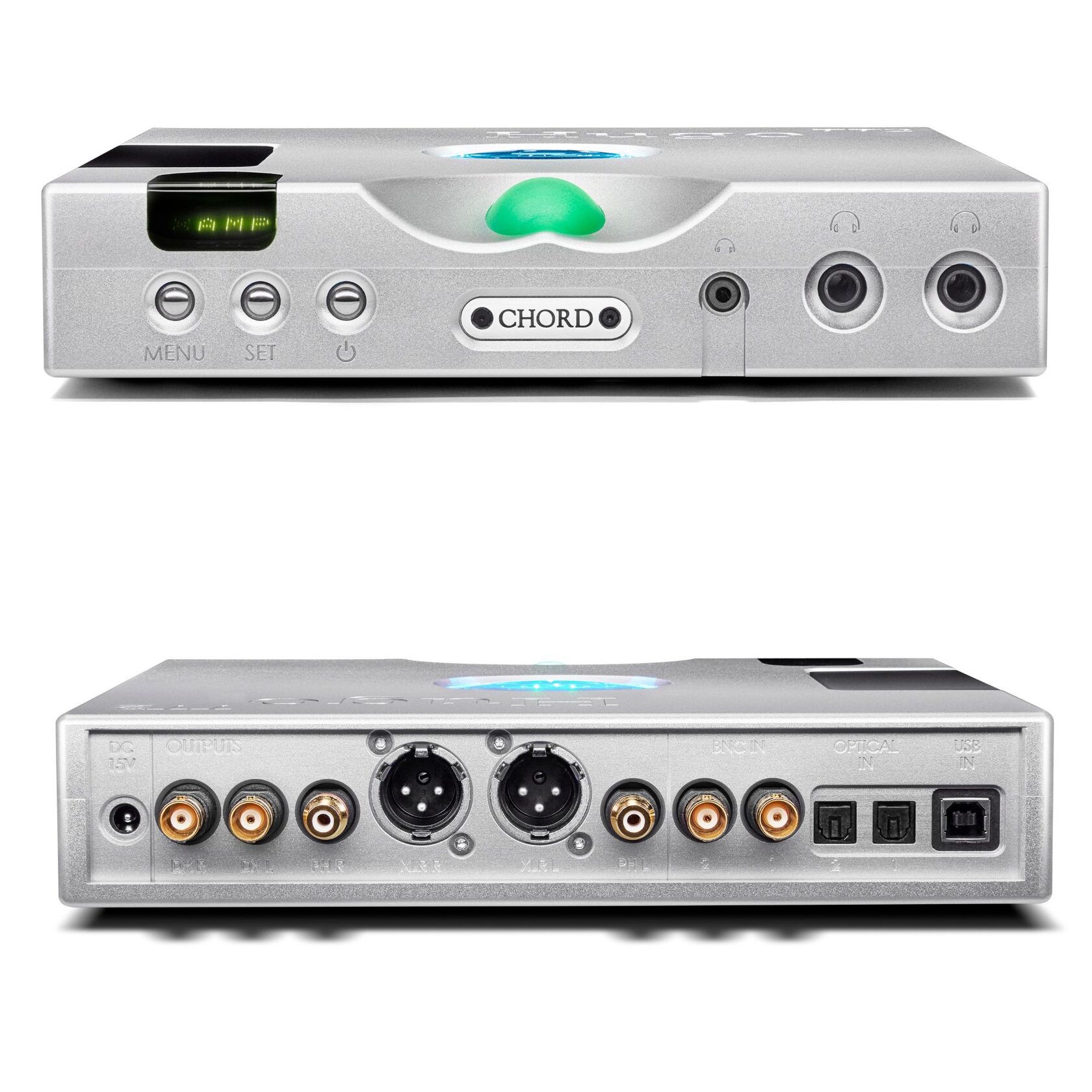

Connectivity (input): 1x USB Type-B, 2x Coax BNC & 2x Optical
Connectivity (output): Stereo XLR, Stereo RCA, 2x 6.5mm Headphone jack & 1x 3.5mm Headphone jack
Connectivity (digital output): 2x DX BNC (expansion outputs)
Weight: 2.53kg
PCM support: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 717.6kHz, and 768kHz. 16 – 32bit
DSD support: DoP DSD 64 to DSD 512 – native via Windows
Volume control: Digital
Line-level mode: Activated within the menu
Driver support: Driverless with Mac OS X and Linux, driver required for Windows OS
Dynamic range
127dB ‘A’ weighted
Noise
4 uV ‘A’ weighted (high gain), 1.7 uV ‘A’ weighted (low gain) with no measurable noise floor modulation
Distortion
0.00008% @ 2.5 V 300Ω; 0.00016% @ 6 W 8Ω
Output power (unbalanced)
(@1% THD) 288 mW RMS 300Ω; 7.3 W RMS 8Ω
Output power (balanced)
(@1% THD) 1.15 W RMS 300Ω; 18W RMS 8Ω
Power consumption
Full power – 30 W
Standby – 10 W
Output impedance
0.042Ω
Stereo separation
9 V RMS 300Ω -138dB
Dimensions
5.2cm (H) 23.5cm (W) 23.8cm (D)
