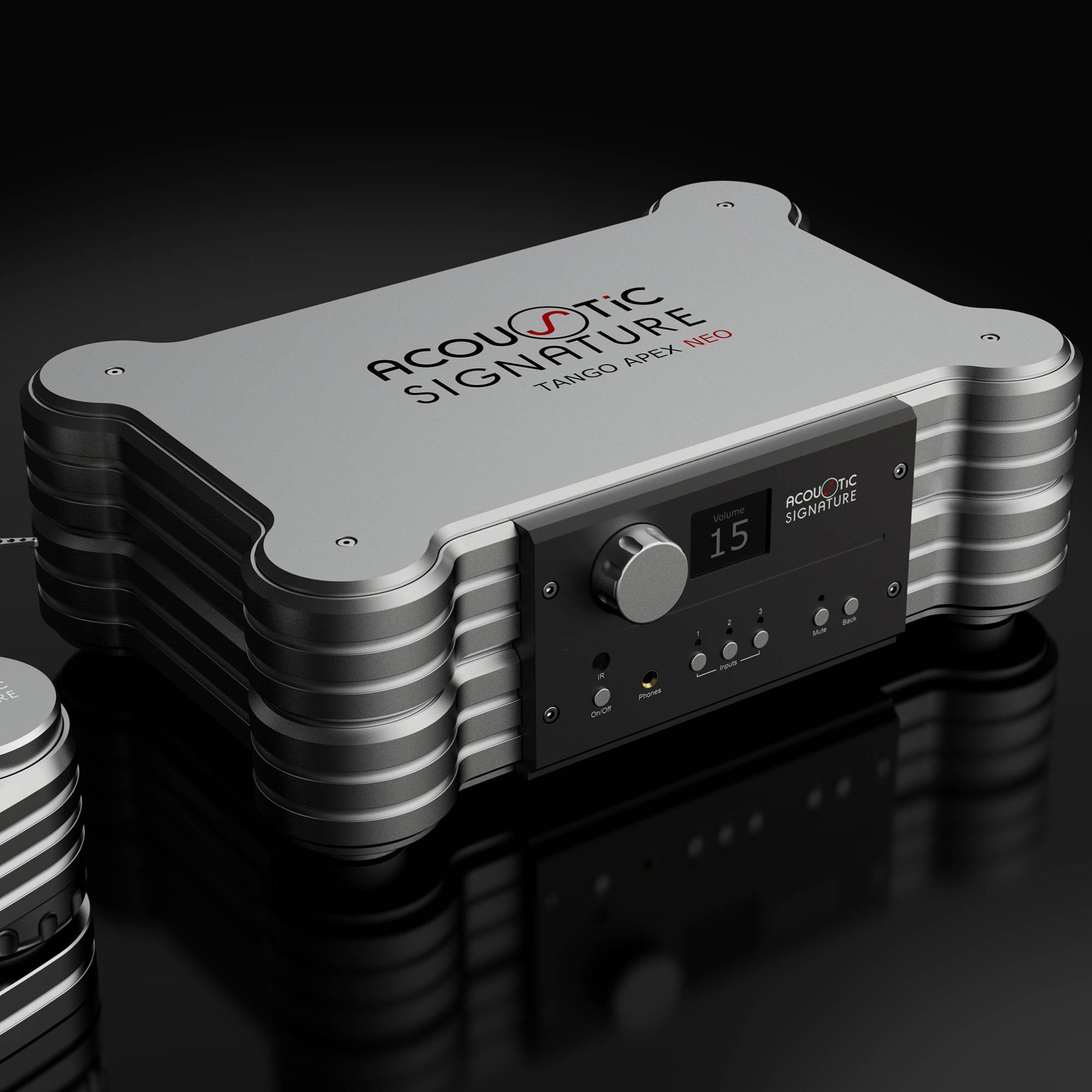

Acoustic Signature Tango Apex NEO flagship phono preamp. Made in Germany

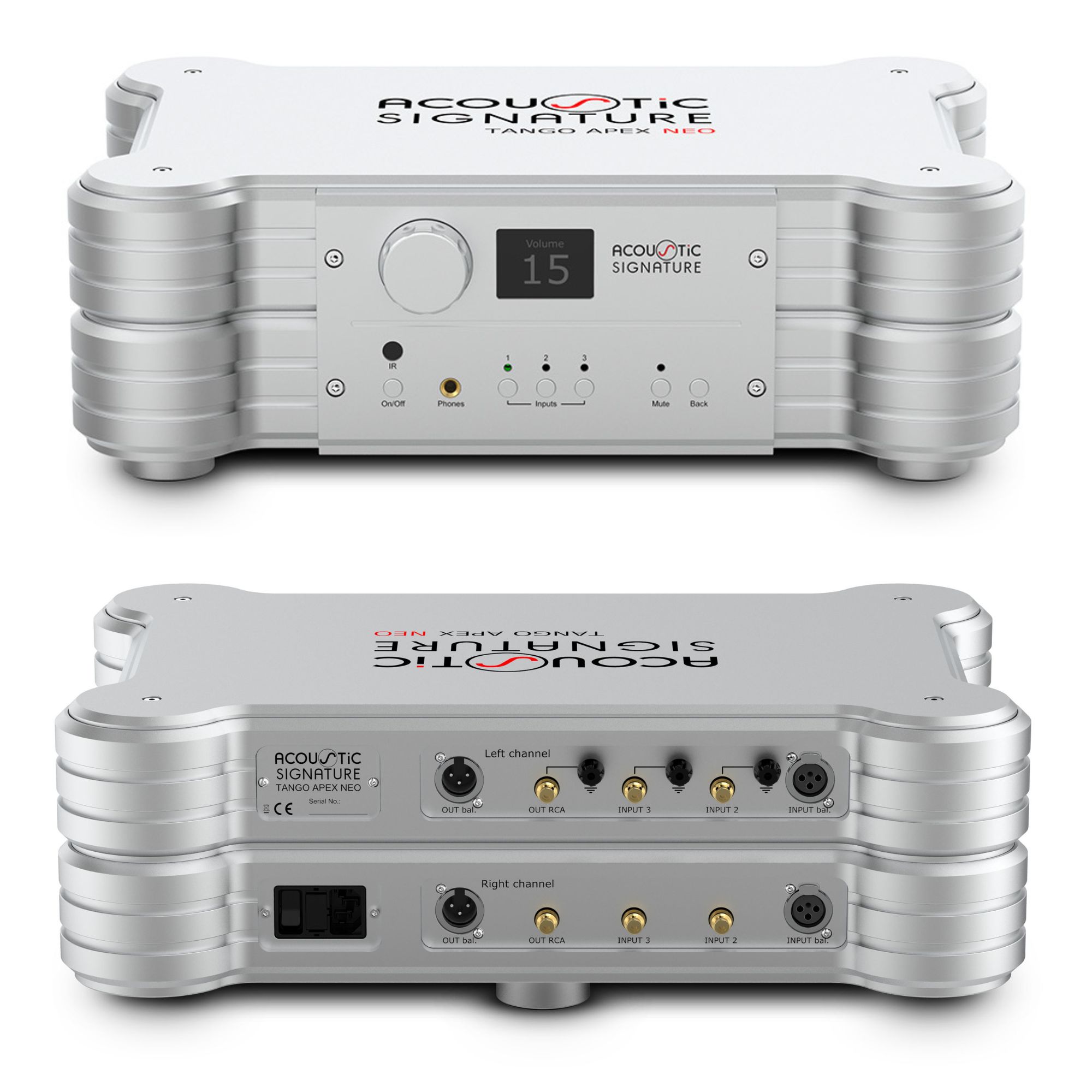

Acoustic Signature Tango Apex NEO high end phono preamplifier – front and rear views

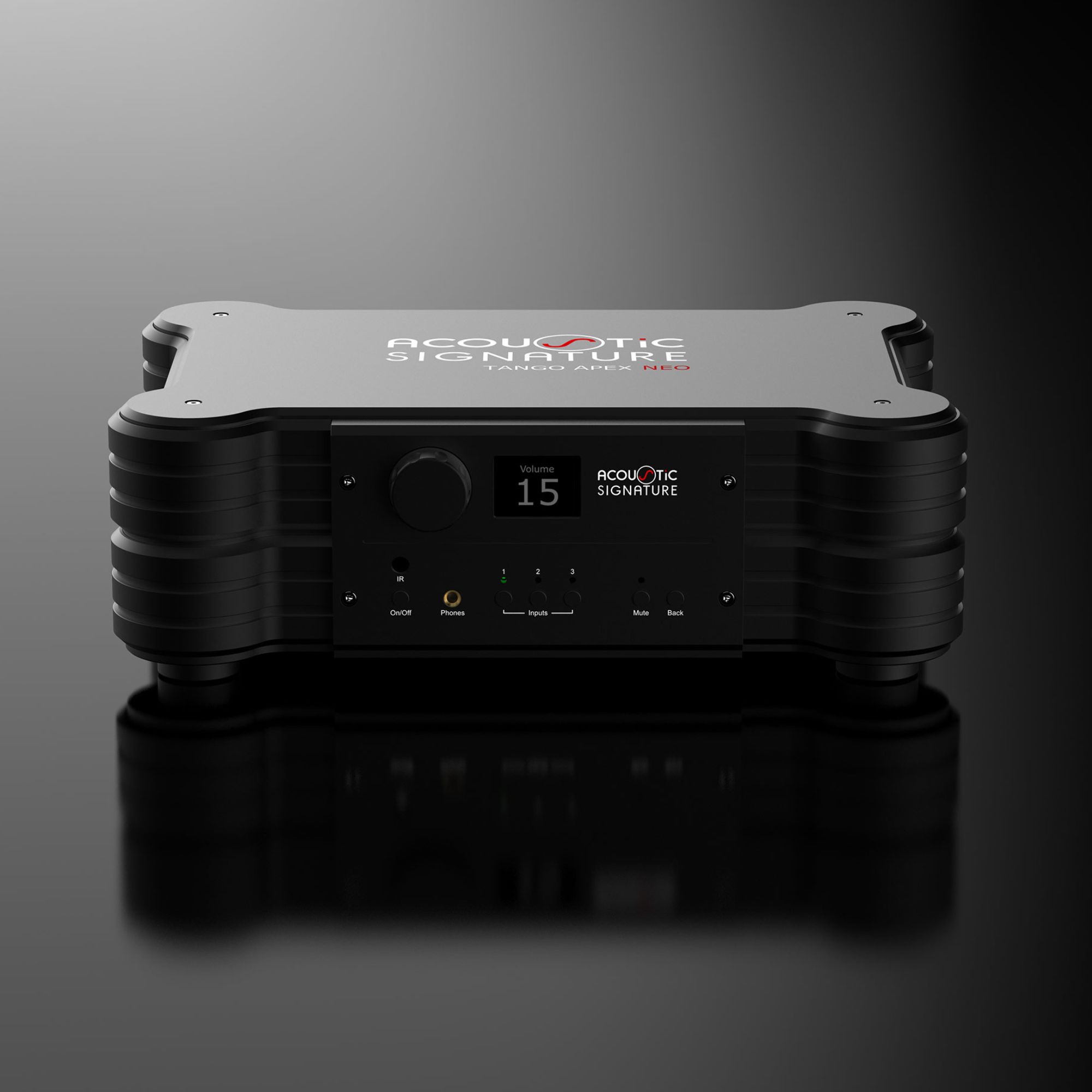

Acoustic Signature Tango Apex NEO black

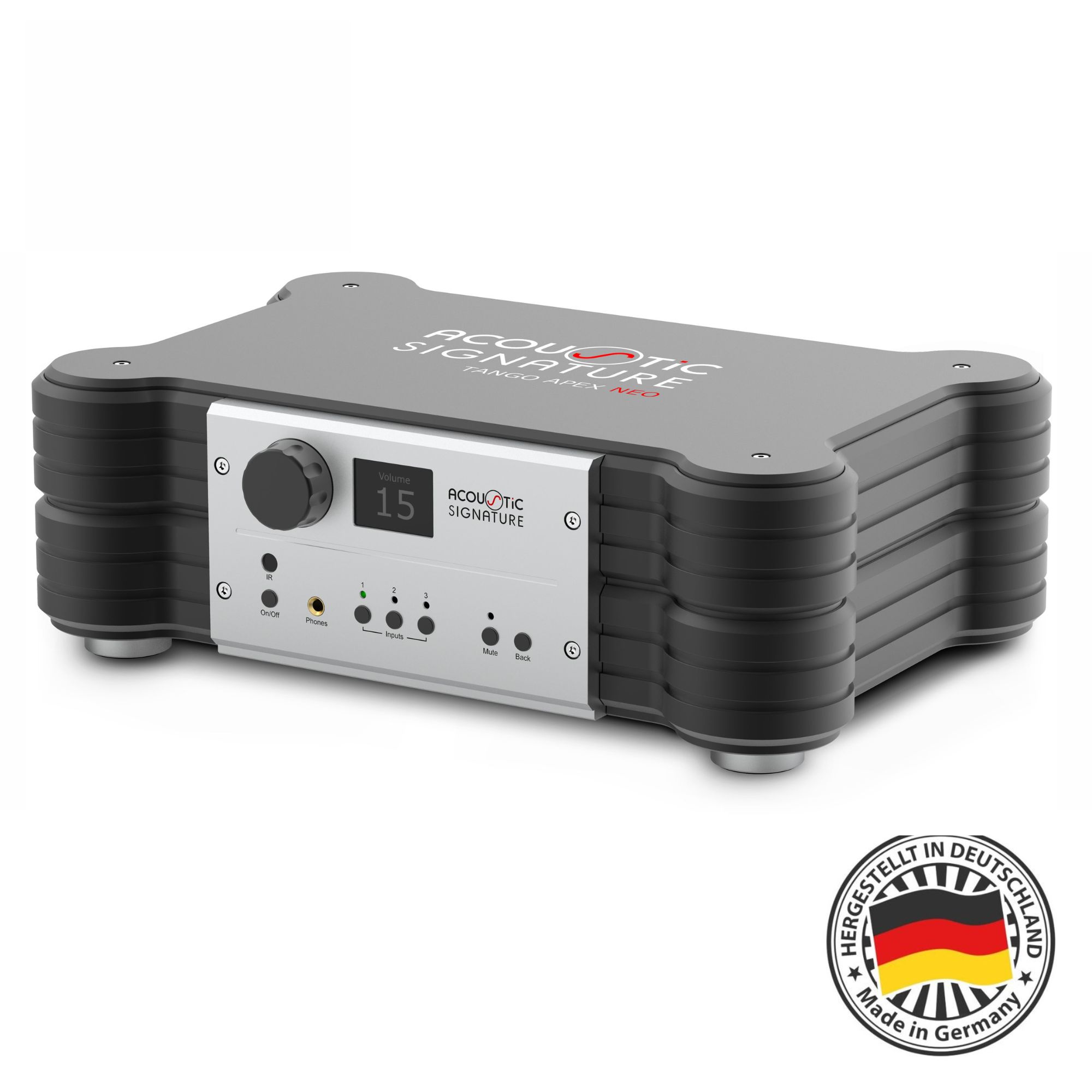

Acoustic Signature Tango Apex NEO premium phono stage

Acoustic Signature Tango Apex NEO – phono preamp

26 248,00 €

Category Phono Stages Brand: Acoustic Signature

Categories: Phono Stages

Acoustic Signature Tango Apex NEO

Experience true analogue perfection with the Acoustic Signature Tango Apex NEO. This exceptional balanced phono preamp boasts a strictly double mono construction. Consequently, it delivers unparalleled channel separation and pristine sound quality for the most demanding audiophiles.

Ultimate Double Mono Design

Furthermore, this premium german phono stage is meticulously designed with an extra housing per channel. Moreover, it features a dedicated power supply and a distinct phono amp for each side. Therefore, this uncompromising architecture guarantees absolute signal purity and eliminates interference.

Fully Remote Controlled Experience

Additionally, all the advanced features of this high-end phono preamplifier are completely remote controlled for maximum convenience. As a result, you can effortlessly adjust the settings from your listening position, ensuring an immersive and uninterrupted musical journey.

Elevate Your Analogue System

MGY OU is the official distributor of Acoustic Signature in Estonia, Latvia, and Lithuania. Order the Acoustic Signature Tango Apex NEO today and transform your vinyl playback!

10 DAYS FREE HOME TRIAL

FREE
SHIPPING

OFFICIAL WARRANTY

MADE IN
GERMANY

Related products

Acoustic Signature TA-10000 NEO – 9″ or 12″ tonearm

Acoustic Signature Ascona NEO – turntable

Acoustic Signature Invictus Jr NEO – turntable

Acoustic Signature Invictus NEO

Acoustic Signature TA-9000 NEO – 9″ or 12″ tonearm

Acoustic Signature MCX4 – cartridge

Acoustic Signature Tango Apex NEO | Key Features

Operates as a fully balanced phono preamplifier to deliver a remarkably dynamic and noise-free soundstage
Features a strictly double mono construction to ensure unparalleled channel separation and uncompromised signal purity
Utilises an independent, dedicated housing for each channel to actively eliminate cross-interference
Incorporates a dedicated power supply for each individual channel, guaranteeing absolute stability and premium performance
Offers ultimate convenience and ease of use with all advanced features and settings being completely remote controlled
Meticulously designed and engineered in Germany to meet the exact demands of the finest high-end analogue systems

Special features

3 inputs: 1 x balanced XLR and 2 x unbalanced RCA
All signal switching is carried out with ultra high-quality miniature signal relays
Adjustable gain for each input (individually adjustable): 40 dB, 50 dB, 60 dB and 70 dB
Input impedance individually adjustable for each input: 47, 100 , 220 , 470 , 1 k, 47 k and all values resulting from parallel connection.
Input capacitance: basic capacitance approx. <=100 pF, switchable capacitances for unbalanced inputs: 100 pF and 220 pF; Two capacitances can be switched on, resulting in three values (C1, C2, C1+C2)
Subsonic filter: -24 dB. Operating frequency 20 Hz
2 outputs: 1 x XLR and 1 x RCA, maximum output voltage 8.5 V RMS switchable as fixed output or as adjustable output (volume control in 100 steps)
Built-in headphone amplifier: maximum output voltage 8.5 V RMS

Power supply unit: separate shunt power supply with 25 VA per channel and one separate power supply with 25 VA for the microprocessor control. Digital control galvanically isolated from the analog power supply.
S/N: e.g. -73 dB at 60 dB amplification
Frequency response: +-0.13 dB RIAA equalized
Distortion factor: 0.06 %
Crosstalk attenuation: better -90 dB due to double mono design
Weight: 34,5 kg

Technical specifications

Dimensions & Weight

Dimensions (W x D x H): 502 x 337 x 165 mm (19.77 x 13.27 x 6.5 inch)
Weight: 34.5 kg (76 lbs)

Audio Performance

Gain: 40–70 dB (+ value in <Input Lvl>)
MM Input Capacity (47 kΩ): 100, 220, 320 pF
MC Input Impedance: 47, 100, 220, 470, 1000, 47000 Ω
Channel Separation: > 89 dB (1 kHz)
RIAA Accuracy: ± 0.2 dB (30 Hz – 20000 Hz)
Distortion: < 0.01%
Max. Output Level: XLR: 6.5 Veff | RCA: 6.5 Veff
Subsonic Filter: 24 dB at 15 Hz

Power & Connectivity

Outputs (Impedance / Power): Unbalanced (RCA), 10 Ω | Balanced (XLR), 10 Ω | Phones: max. 900 mW (30–250 Ω)
Power Supply: Internal analogue power supply for each channel; Input: 115 V or 230 V AC 50/60 Hz (factory setting)
Power Consumption: 25 W (Rated power) / 0.5 W (Standby)
Fuse: 2 A @ 115 V / 1 A @ 230 V, slow blow
