PMC 6-2

PMC

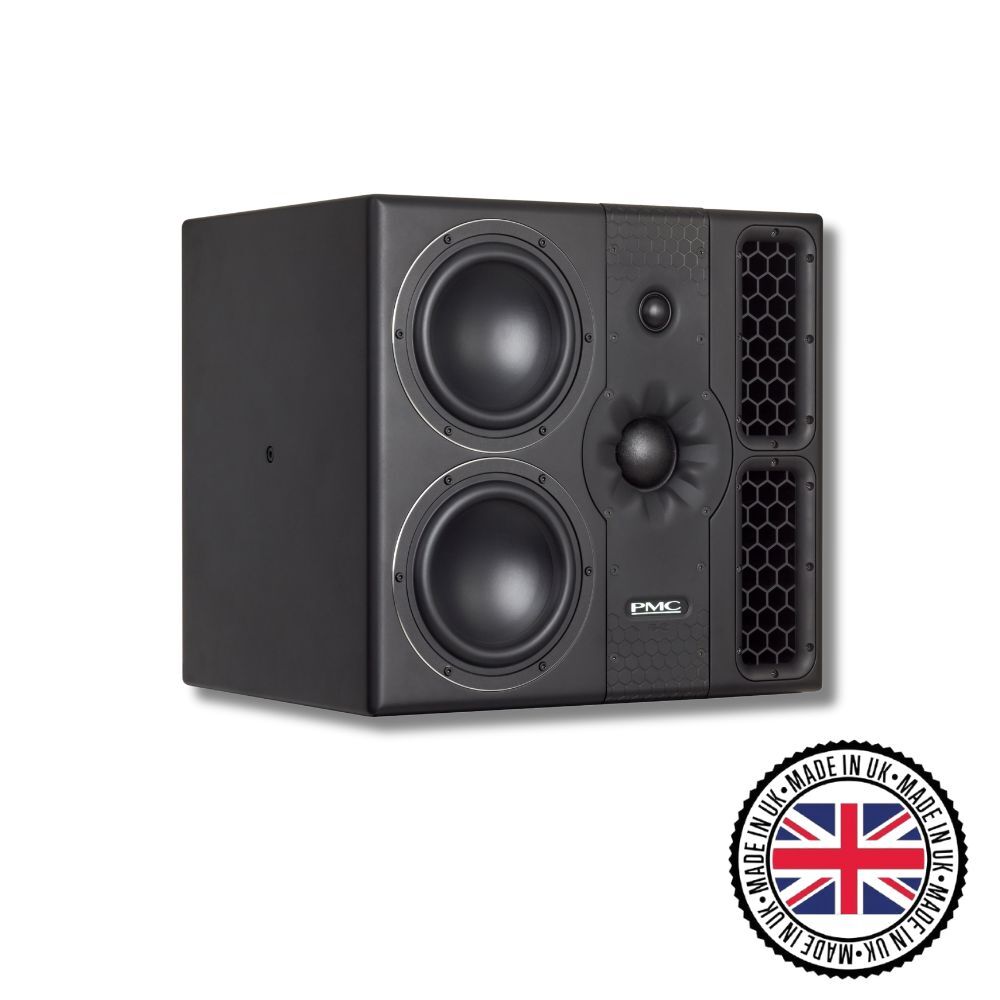

PMC6-2 Active 3-Way Nearfield Reference Monitor

The PMC6-2 delivers main-monitor scale, depth, and dynamics, enabling fast, confident mix decisions without fatigue.

This 3-way active monitor combines two custom-designed 6-inch ultra-long-throw bass drivers with the PMC55 2-inch soft-dome mid-range unit and a precision-built 1-inch soft-dome tweeter. The PMC55 features an innovative ‘N-compass’ waveguide that enhances wide dispersion and exceptional mid-range projection. Together with the high-performance tweeter, this design produces an ultra-wide, stable soundstage with a smooth, natural in-room response. Each bass driver is powered by its own 400W Class-D amplifier, all controlled by highly accurate DSP-based crossovers for seamless integration. Like the PMC6, the PMC6-2 can be configured via rear-panel controls or the browser-based SoundAlign™ software, offering comprehensive boundary and EQ options.

Thanks to ATL™ (Advanced Transmission Line) bass-loading technology, the PMC6-2 achieves an exceptional size-to-performance ratio, delivering extended low frequencies and consistent tonal balance across all listening levels. Laminair™ airflow technology, visible in the hexagonal vent ducts, reduces colouration and enhances both dynamics and efficiency.

For those seeking even greater performance, the PMC6-2 can be upgraded to a full-range XBD system by adding the PMC8.2 SUB. Simply activate XBD mode, which perfectly integrates the two units, extending the bass response down to 25Hz with additional headroom.

Frequency response: 33Hz - 25kHz (- 3dB) (@1m full space, on-axis)

Drive unit complement: LF 2 x PMC 150mm (6”) studio 6 drivers; MF PMC 55mm (2”) soft dome mid-range; HF PMC 27mm (1”) soft dome tweeter

Effective ATL™ Length: 2m (6.6ft)

Peak SPL: 121dB @1m

Max continuous SPL: 109dB @1m

Crossover frequency: 2kHz

Output: XLR digital AES3 (fixed 24-bit @ 96kHz)

Amplifier Power per Channel: LF 2 x 400Wrms; MF 1 x 400Wrms; HF 1 x 400Wrms

Product Type: Nearfield Monitor

Sensitivity: +4dBu input signal = 98dB SPL @ 1m

Latency: 2.4mS

Mains: 100 - 240VAC auto-switching, 50-60Hz (IEC C14)

Power Consumption: 1500W

lwh: 400x430x372 mm

Weight: 21300 g
