PMC 6

PMC

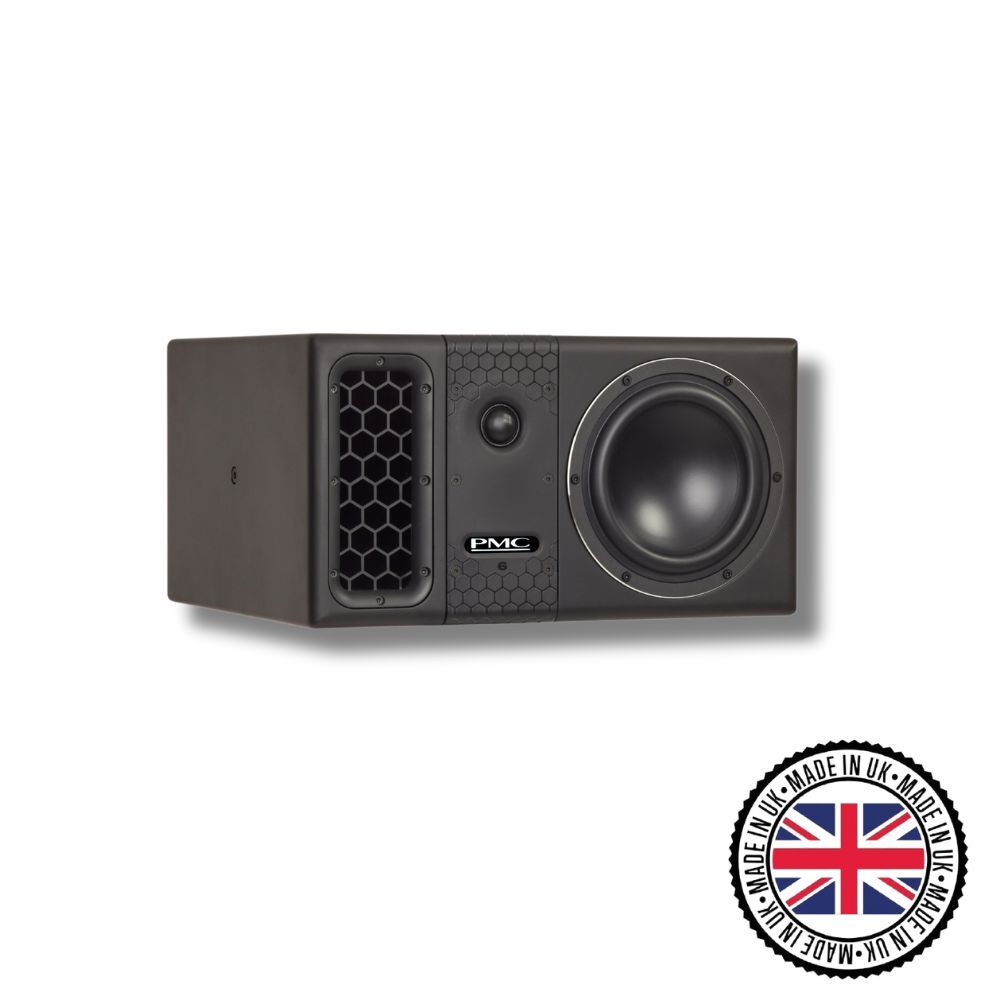

PMC6 Active Nearfield Reference Monitor

The PMC6 is packed with innovative features, offering the same acclaimed sonic signature as PMC’s larger monitors. It is perfect for smaller control rooms or as part of larger immersive systems, where its outstanding resolution enables confident, critical mix decisions.

Equipped with a bespoke 6-inch bass driver boasting 20mm of excursion, the PMC6 integrates seamlessly with PMC's latest ATL™ (Advanced Transmission Line) bass-loading and Laminair™ airflow technologies. This combination delivers performance that rivals most 8-inch monitors, providing exceptional bass extension, headroom, dynamics, and low distortion across all levels. The high frequencies are handled by a precision 1-inch fabric soft-dome tweeter, featuring a shallow waveguide for wide, tonally consistent dispersion and precise imaging. Both drivers are individually powered by state-of-the-art 200W Class-D amplifiers, ensuring ultra-low distortion and high damping factor.

Whether positioned in portrait or landscape orientation, the PMC6’s sophisticated DSP engine automatically adjusts the crossover to maintain optimal tonal accuracy, phase coherence, and imaging. Calibration is easy via rear-panel controls or PMC’s browser-based SoundAlign™ software.

For those seeking a full-range system, the PMC6 can be upgraded with a PMC8 SUB, forming the PMC6 XBD system. Activating the ‘XBD’ DSP mode optimises the integration of both units, delivering deep bass extension down to 25Hz.

Frequency response: 39Hz - 25kHz (- 3dB) (@1m full space, on-axis)

Drive unit complement: LF PMC 150mm (6”) studio 6 driver; HF PMC 27mm (1”) soft dome tweeter

Effective ATL™ Length: 1.8m (5.9ft)

Peak SPL: 118dB @1m

Max continuous SPL: 106dB @1m

Crossover frequency: 2kHz

Input Connectors: XLR switchable between analogue & digital AES3; Analogue input - +20/+24dBu max. input level (selectable) - 22K ohm input impedance; Digital input - 16/24-bit AES3 signal, left, right or left + ri

Output: XLR digital AES3 (fixed 24-bit @ 96kHz)

Amplifier Power per Channel: LF 1 x 200Wrms; HF 1 x 200Wrms

Product Type: Nearfield Monitor

Sensitivity: +4dBu input signal = 98dB SPL @ 1m

Latency: 2.4mS

Mains: 100 - 240VAC auto-switching, 50-60Hz (IEC C14)

Power Consumption: 400W

lwh: 400x215x372 mm

Weight: 11100 g
