PMC 8-2

PMC

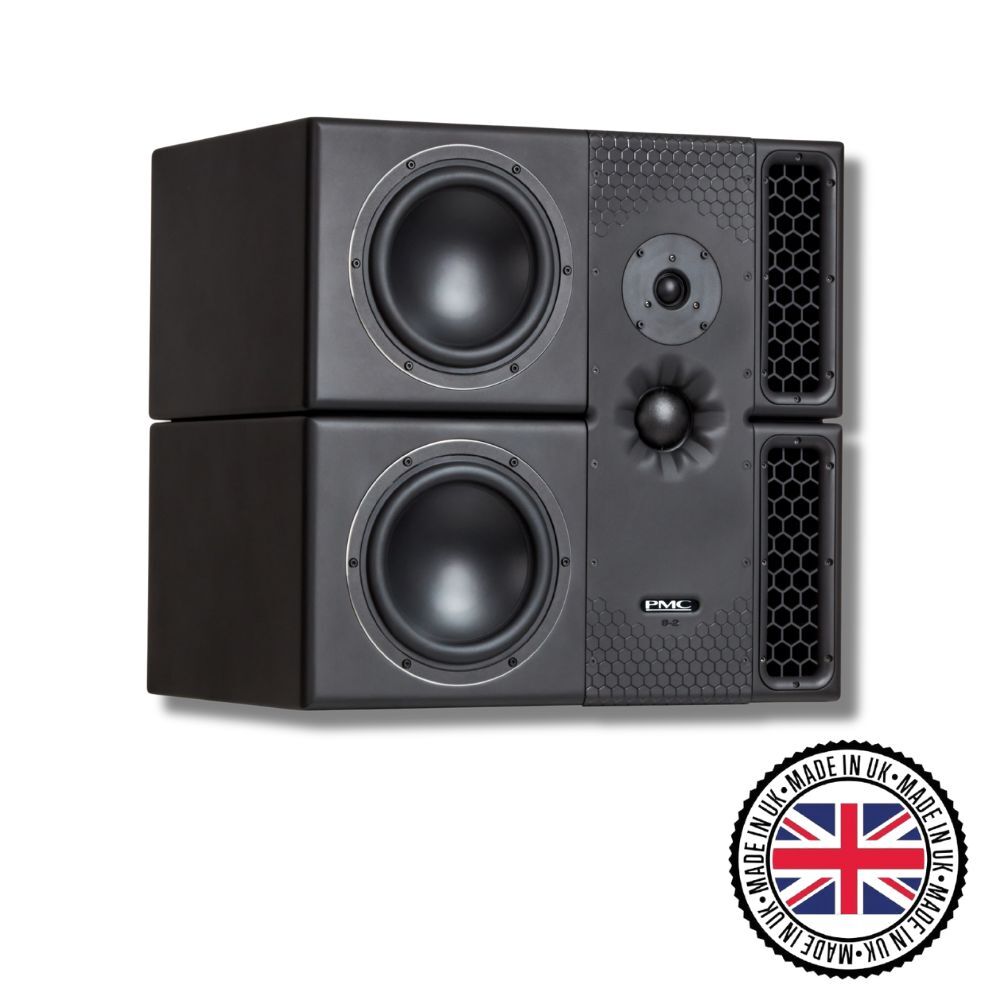

This three-way active studio monitor is engineered for the most demanding environments, delivering precise and critical reference monitoring with exceptional accuracy.

As with all PMC loudspeakers, the PMC8-2’s super-consistent dispersion and tonal balance allow it to seamlessly integrate with smaller PMC speakers to form larger multi-channel or immersive systems.

The dual bass drivers are paired with the same PMC55 mid-range tweeter, DSP system, and four channels of 400W Class-D amplification found in the PMC6-2. The speaker can be configured via the rear panel or through PMC’s intuitive SoundAlign™ software using a computer or tablet.

Featuring a meticulously tuned ATL™ cabinet and hexagonal Laminair™ vents, the PMC8-2 delivers exceptional performance that rivals our main reference monitors. It offers smooth and accurate bass down to 25Hz, a revealing mid-range, and expansive, stable sound-staging. The PMC8-2’s outstanding definition, fidelity, dynamics, and low-end precision ensure confident mix decisions, with no listening fatigue, even during extended sessions.

The PMC8-2 can be upgraded with the addition of a PMC8-2 SUB to create an XBD system, enhancing bass headroom by 6dB. Dedicated floor stands are available for both the PMC8-2 and PMC8-2 XBD systems, positioning them at the ideal listening height.

Frequency response: 25Hz - 25kHz (- 3dB) (@1m full space, on-axis)

Drive unit complement: LF 2 x PMC 200mm (8”) studio 8 drivers; MF PMC 55mm (2”) soft dome mid-range; HF PMC 27mm (1”) soft dome tweeter

Effective ATL™ Length: 3m (9.8ft)

Peak SPL: 125dB@1m

Max continuous SPL: 113dB @1m

Crossover frequency: 2kHz

Output: XLR digital AES3 (fixed 24-bit @ 96kHz)

Amplifier Power per Channel: LF 2 x 400Wrms; MF 1 x 400Wrms; HF 1 x 400Wrms

Product Type: Midfield Monitor

Sensitivity: +4dBu input signal = 98dB SPL @ 1m

Latency: 2.4mS

Mains: 100 - 240VAC auto-switching, 50-60Hz (IEC C14)

Power Consumption: 1500W

lwh: 534x551x440 mm

Weight: 39000 g
