13,490.00€
10 in stock
Chord Electronics’ ULTIMA 5: The Future of High-Fidelity Audio Amplification
Chord Electronics’ ULTIMA 5 emerges from the acclaimed legacy of the SPM 1200 MK II, introducing the advanced ULTIMA circuit topology to blend superior performance with value. Delivering 350 watts of power, it’s designed to effortlessly drive a wide range of loudspeakers.
Featuring innovative dual-feed-forward error-correction and ultra-high-frequency power supplies, the ULTIMA 5 achieves rapid response and dynamic performance, enhancing musicality with its 32 proprietary MOSFET power devices. This ensures detailed sound reproduction with unmatched clarity and precision.

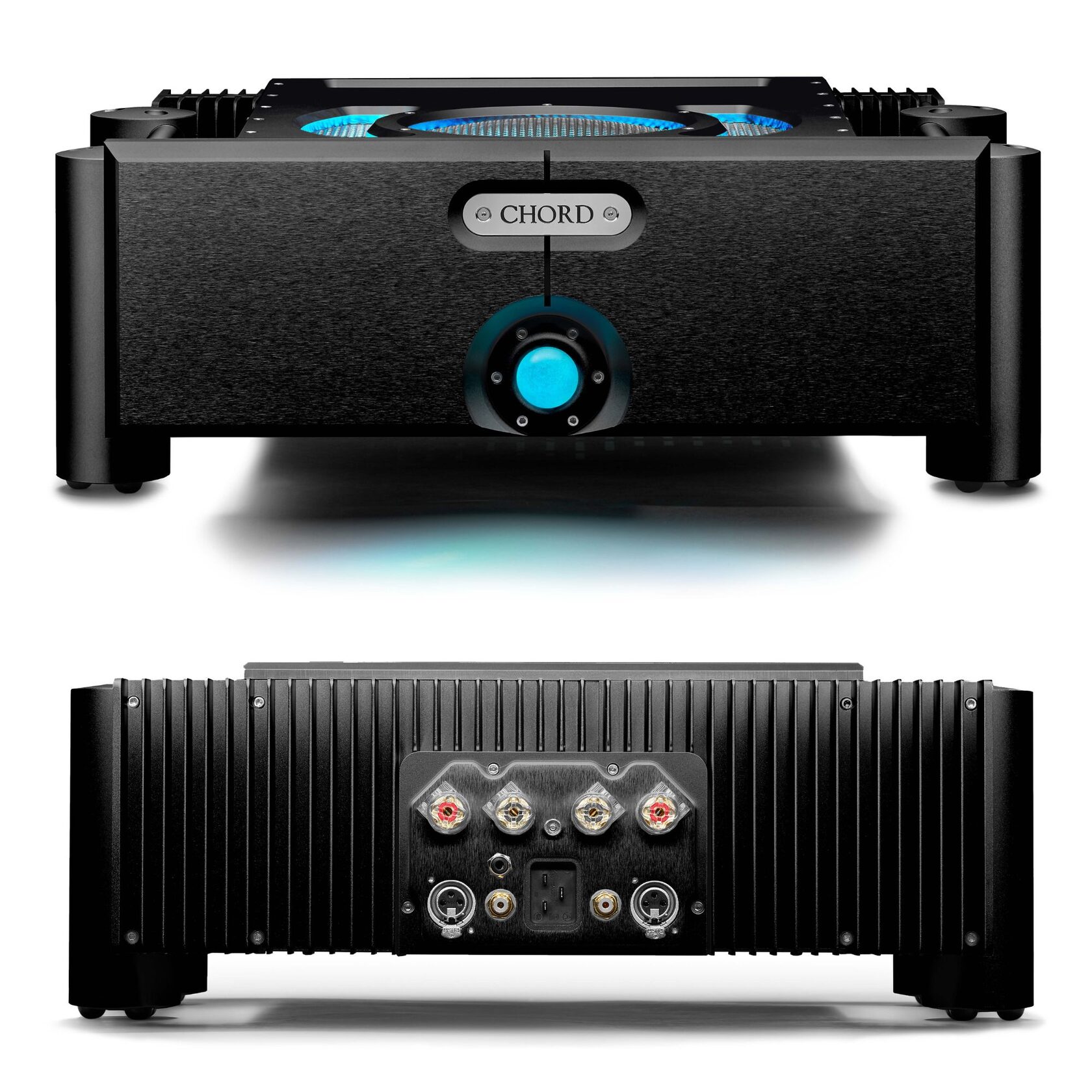

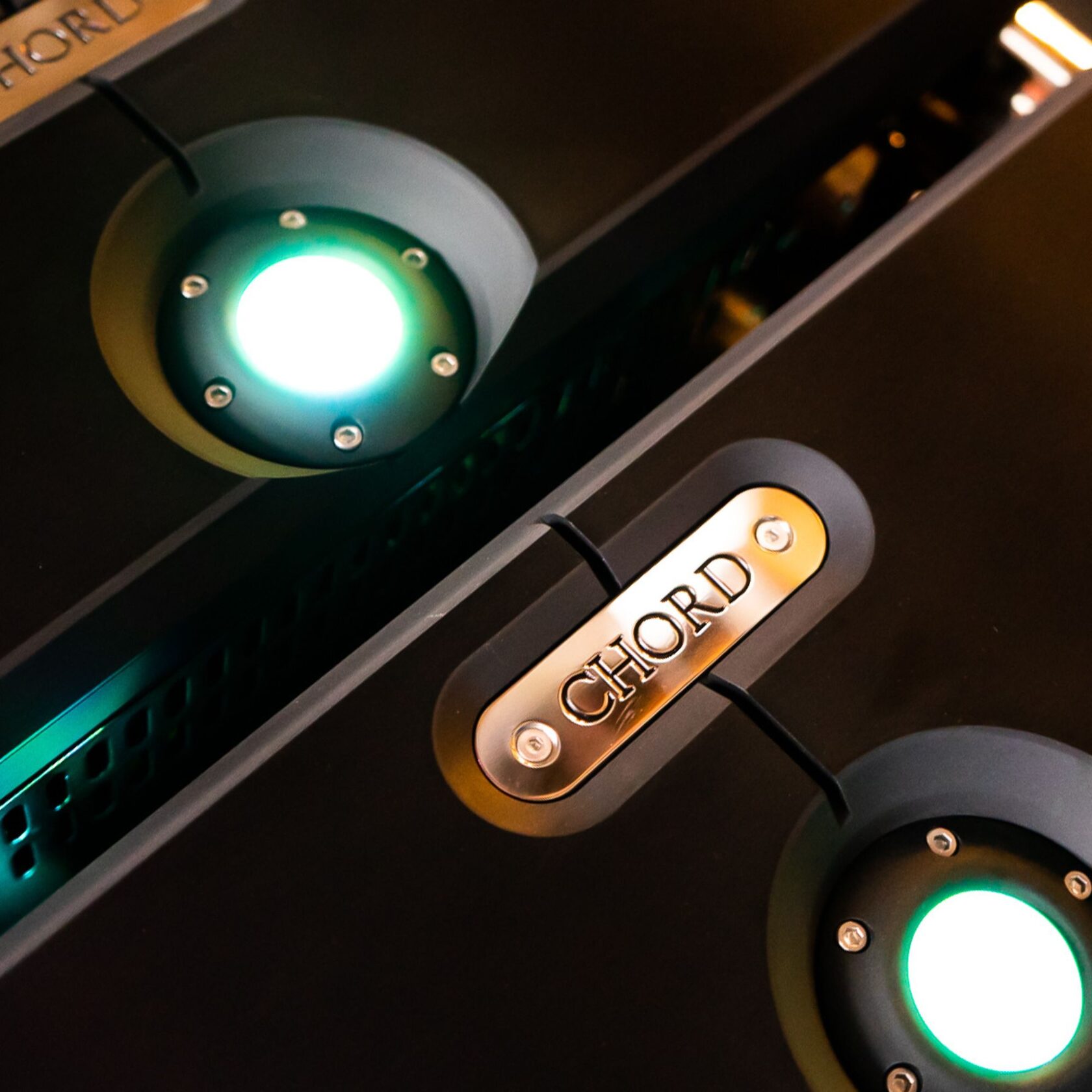

The amplifier showcases a modern design with a CNC-machined, aircraft-grade aluminium fascia, a 28-mm thick front panel, and a distinctive illuminated power button, all reflective of John Franks’ contemporary design ethos. Functionality meets form with balanced and unbalanced inputs, high-quality loudspeaker terminals, a 12 V trigger, and a C-19-type IEC connector.
Chord Electronics’ ULTIMA 5 represents the pinnacle of audio amplifier technology, promising unparalleled sound quality and a visually stunning addition to any audiophile’s collection.
Inputs:
1x Stereo Pair of Gold Plated Balanced XLR Inputs
1x Stereo Pair of Gold Plated Unbalanced RCA Inputs
1x 12v Trigger Input – Chord Electronics Auto Start
Output:
1x Pair of High Quality, High Current, Gold Plated Type Speaker Terminals
Output Power:
300W RMS per channel into 8Ω
500W RMS per channel into 4Ω
Power consumption:
Full power – 2000 W
Standby – 10 W
THD:
0.005%
Frequency Response:
-1dB – 0.5Hz – 100kHz
Gain:
30dB
Dimensions with included Integra Legs:
18cm (H) x 48cm (W) x 36cm (D)
Dimensions with optional Side Blocks:
15cm (H) x 42cm (W) x 36cm (D)
Weight:
22.4kG
