8,990.00$
10 in stock
The ULTIMA 6 currently provides the most cost-effective entry point into our next-generation ULTIMA family of stereo power amplifiers. It builds upon the success of its award-winning predecessor, the SPM 1050 MK II, by incorporating our groundbreaking next-generation ULTIMA amplifier technology.
This new 180-watt model, featuring John Franks’ innovative dual-feed-forward circuitry, delivers lightning-fast response and effortless power, resulting in astonishing dynamics and timing that set new standards for fidelity.
The ULTIMA 6 boasts an impressive array of 16 proprietary MOSFET power devices, which necessitate the most advanced and refined drive circuitry. It features an ultra-low-distortion, high-voltage amplifier that operates at an astonishingly high speed of 300 volts per microsecond. Our TO3-style dual-die lateral-matched MOSFETs are under continuous monitoring with error-correction circuitry in the output stage. The amplifier also includes fully balanced input circuitry with DC-tracking servos and comprehensive temperature compensation.
While sharing the same genetic makeup as our flagship and reference-level monoblock amplifiers, the ULTIMA 6 offers greater practicality and affordability due to its distinct power output.

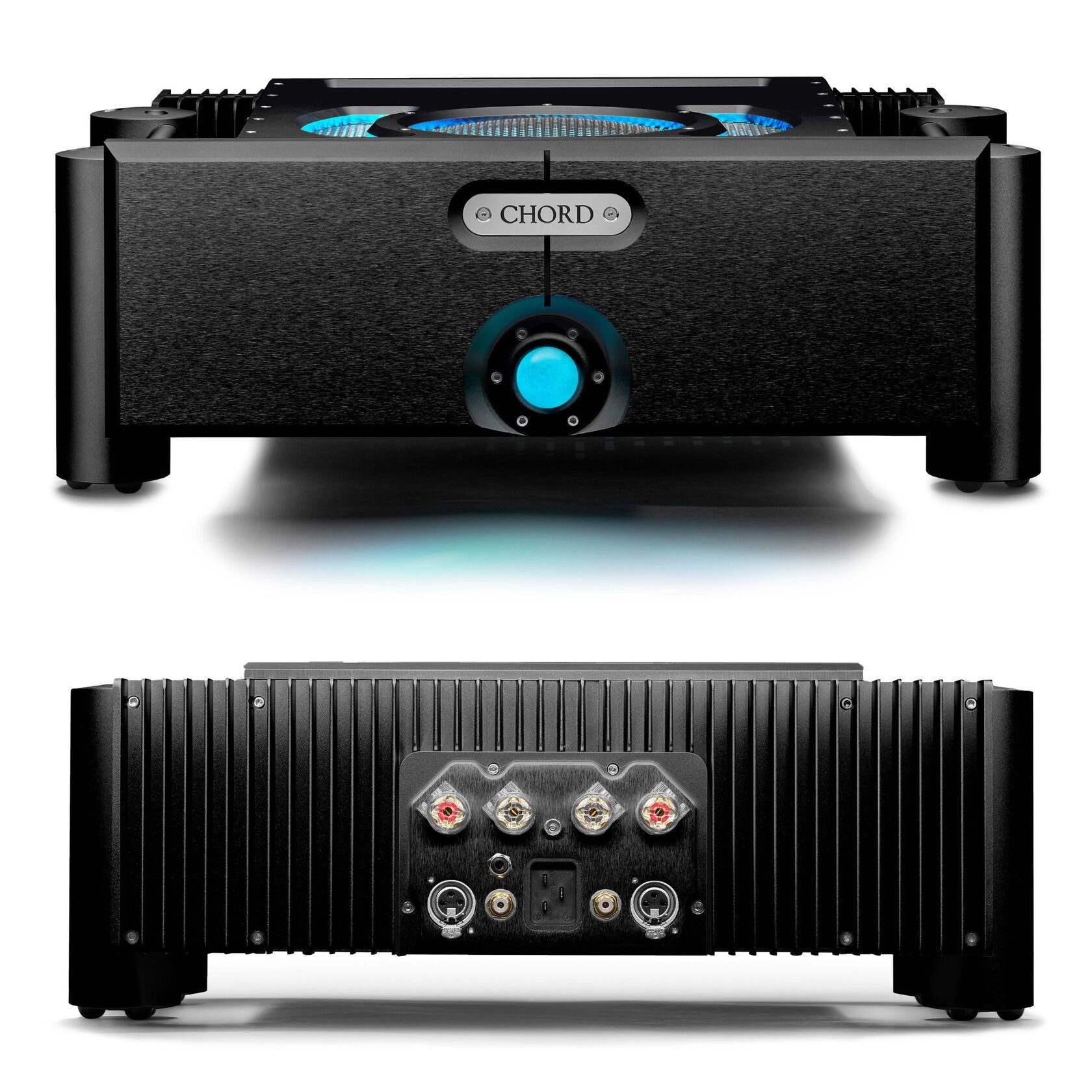

On the rear panel, you’ll find both balanced and unbalanced connections, high-quality loudspeaker terminals, a 12 V trigger, and a C-19-type IEC connector.
Inputs:
1x Stereo Pair of Gold Plated Balanced XLR Inputs
1x Stereo Pair of Gold Plated Unbalanced RCA Inputs
1x 12v Trigger Input – Chord Electronics Auto Start
Output:
1x Pair of High Quality, High Current, Gold Plated Type Speaker Terminals
Output Power:
180W RMS per channel into 8Ω
350W RMS per channel into 4Ω
Power consumption:
Full power – 1500 W
Standby – 10 W
THD:
0.005%
Frequency Response:
-1dB – 0.5Hz – 100kHz
Gain:
30dB
Dimensions with included Integra Legs:
18cm (H) x 48cm (W) x 36cm (D)
Dimensions with optional Side Blocks:
15cm (H) x 42cm (W) x 36cm (D)
Weight:
22.4kG
