10,200.00€
10 in stock
A first integrated amp in the high end ULTIMA line and a first integrated amp to feature advanced ULTIMA technology, the new ULTIMA integrated offers 125 watts per channel of natural engaging sound with vanishingly low distortion: a performance which is up to modern high resolution digital sources and also true to the musical artistry whenever it was recorded.
ULTIMA technology is a synergetic design approach which uses Chord Electronics’ proprietary solutions: high speed low noise power supply, custom designed and exclusively made power MOSFETs and optimized dual-feedforward error correction topology. The name ULTIMA just describes the ultimate performance attainable: outstanding fidelity, class leading low noise and low distortion circuitry, great reserves of power for any loudspeaker.
Main design features:
· Fully balanced operation from inputs to outputs
· Precision machined solid chassis of aerospace grade aluminium
· Individually buffered inputs to prevent all kinds of interference
· Microprocessor controlled source selector relays
· Multilevel protection from operational hazards
· Stackable (Integra Legs) or non-stackable (optional acrylic side blocks)
· Argent Silver or Jet Black finish
Main functionality features:

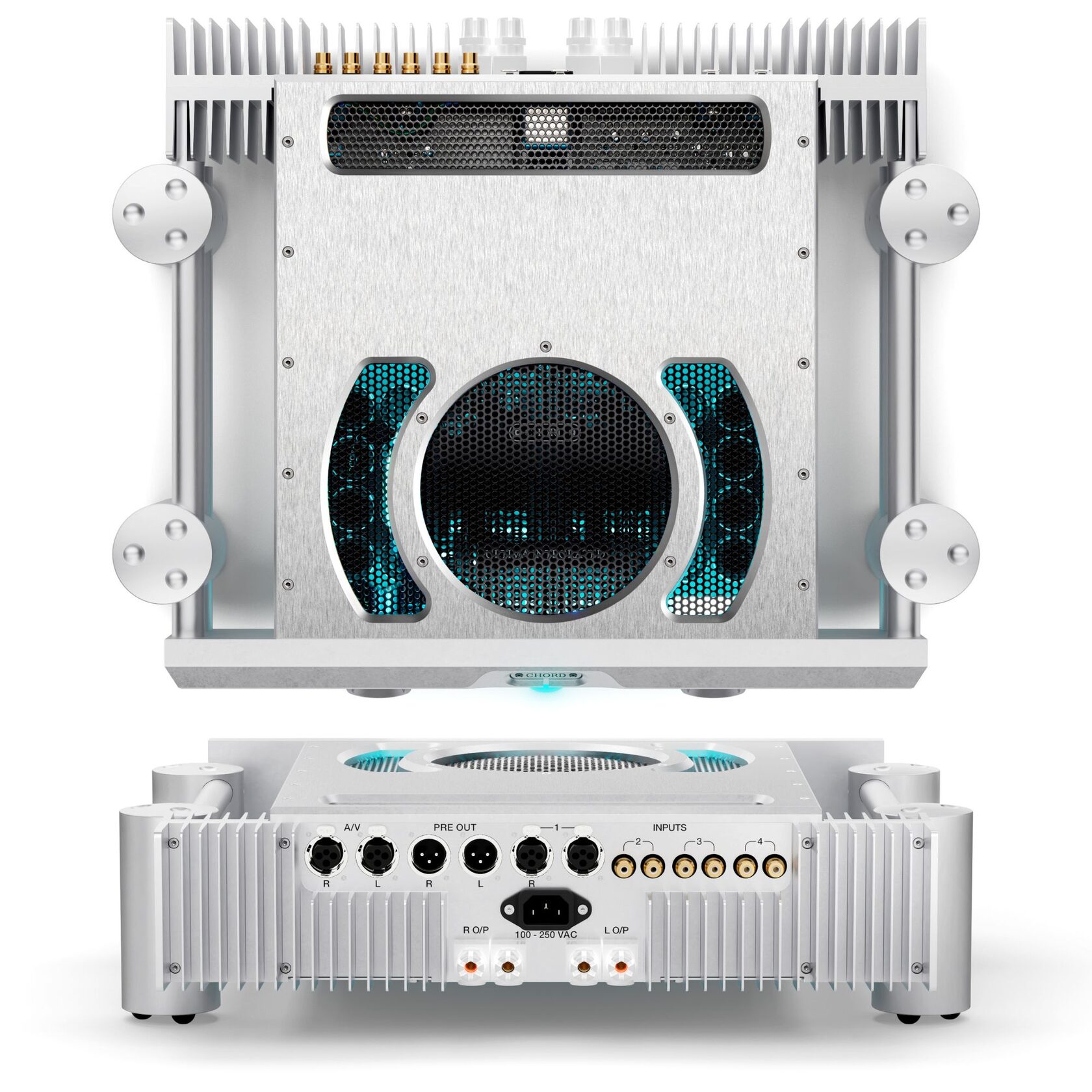

· 1 balanced XLR input, 3 unbalanced RCA inputs
· Pre-amp out (XLR) for an external power amp or bi-amping
· Power amp in (AV-bypass) for use with a multichannel processor
· 12V trigger in/out for remote power on/off
· Balance, mute, LED dim controls
Frequency response: 10 Hz-200 kHz ±3 dB
THD: 0.01 % 20 Hz-20 kHz
Signal-to-noise ratio: 90 dB on all inputs
Input impedance: 100 kΩ
Input maximum voltage: 3 V RMS
Output maximum voltage: 35 V RMS
Gain: 21dB
Channel separation: 100 dB
Mains voltage: 80-250 V AC auto-switching
Power output: 125 W into 8Ω
Power consumption: 200 W
Dimensions with included Integra legs: 13 cm(H) x 48 cm(W) x 38 cm(D)
Dimensions with optional side blocks (can not be stacked): 11 cm(H) x 43 cm(W) x 38 cm (D)
Weight: 14.75 kg
