System Type | 2 ½ way, downwards firing port, with BassTrax™ Tractrix diffuser, twin cavity loading system |
Recommended amplifier power (Watt RMS) | 30 - 300 |
Continuous power handling (Watt RMS) | 150 |
Sensitivity (2.83 Volt @ 1m) | 96dB |
Nominal impedance | 8 Ohm |
Frequency response (-6dB typical in room) | 22Hz - 26kHz |

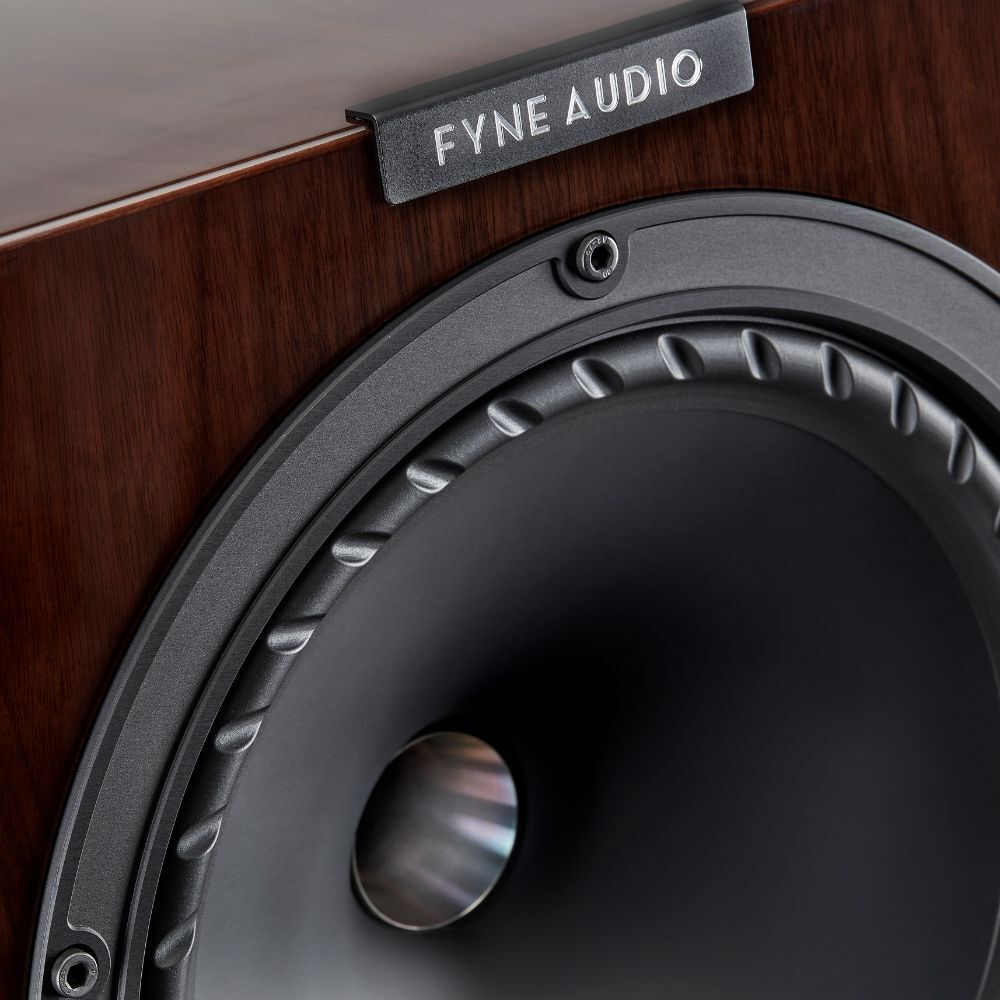

Drive unit complement | 1 x 300mm IsoFlare, point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 75mm titanium dome compression tweeter, neodymium magnet system. 1 x 300mm multi-fibre bass FyneFlute surround. |
Crossover frequency | 250Hz & 850Hz |
Crossover type | Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryogenically treated |
Dimensions - HxWxD | 1353 x 579 x 568mm (53.3 x 22.8 x 22.4") |
Net Weight - Each | 71.5kg (157.6lbs) |

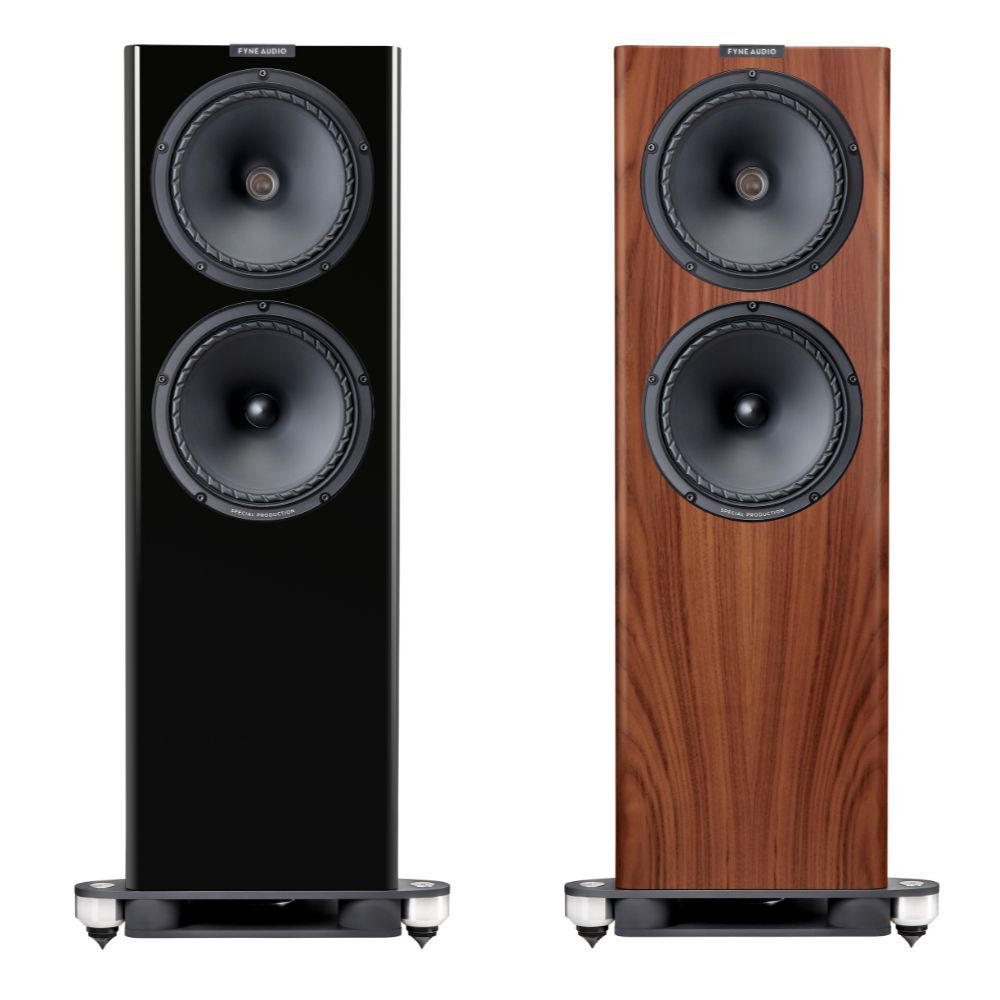

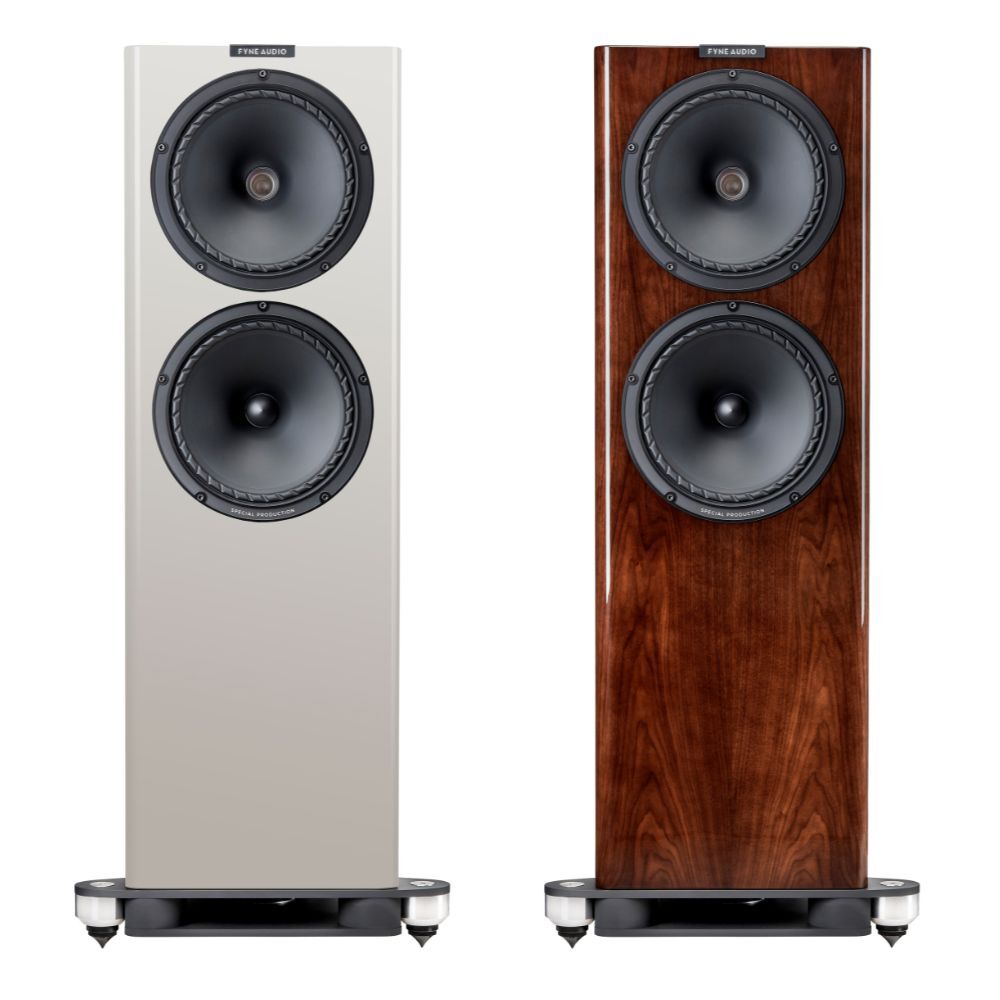

Finishes | Natural Walnut / Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White |
Cabinet Construction | Pressed high density birch ply with extensive internal bracing. |
