Fyne Audio F1-8 – Bookshelf Loudspeaker

Uncompromising British Craftsmanship and Acoustic Design

The F1 Series stands as the absolute zenith of Fyne Audio’s rich heritage and engineering mastery within the high-fidelity landscape. Spanning from the exquisitely proportioned Fyne Audio F1-5 bookshelf model to the commanding presence of the Fyne Audio F1-12S floorstander, this magnificent range pushes the very boundaries of point-source loudspeaker technology. Every cabinet is meticulously designed, precision-manufactured, and lovingly hand-finished at Fyne Audio’s dedicated headquarters in Glasgow, firmly establishing the F1 Series as the definitive statement in premium UK loudspeaker design.

Visually and acoustically, the unique feature set is entirely second to none. From the phenomenally heavyweight, precision-machined metal plinths to the incredibly intricate burr walnut inlays gracing the top and front of the real-wood veneered cabinets, absolutely no detail has been overlooked. The main enclosures are constructed from high-density pressed birch plywood, featuring extensive internal bracing to completely eliminate unwanted resonances. This structural rigidity, seamlessly combined with a bespoke furniture-grade finish, guarantees that the F1 Series delivers both jaw-dropping acoustic transparency and exquisite aesthetic appeal for the most discerning audiophiles.

The Heart of the Performance: IsoFlare Point Source Technology

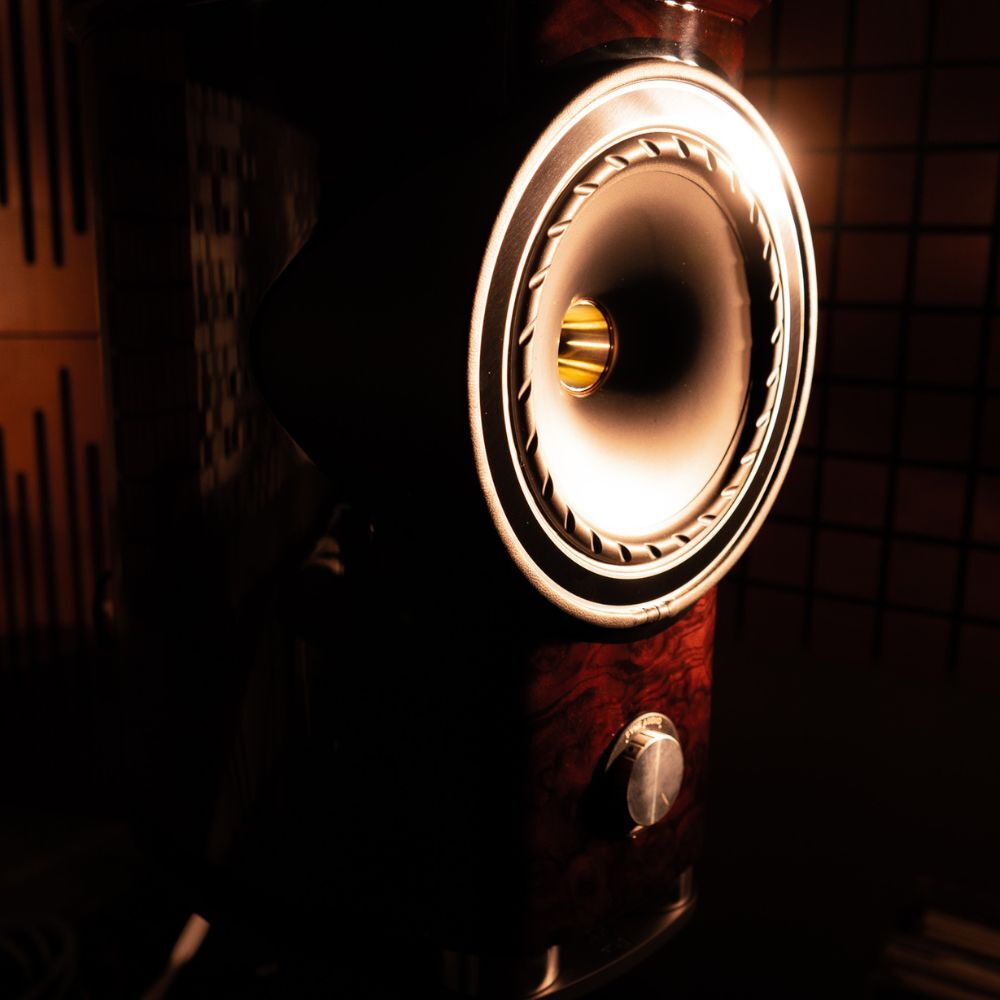

At the core of these flagship loudspeakers lies Fyne Audio’s signature IsoFlare™ driver—a revolutionary point-source system where the bass and midrange driver flawlessly shares a common acoustic centre with the high-frequency unit. This ingenious configuration ensures that acoustic energy is radiated isotropically, maintaining constant directivity that perfectly follows the flare of the driver cone. Because the sound originates from a solitary point in space, it generates a genuinely spherical, time-aligned wavefront. This meticulously preserves the delicate harmonic structure of complex instruments and vocals, recreating a breathtakingly authentic, three-dimensional soundstage.

The high-frequency section features a highly rigid three-inch titanium diaphragm, delivering an effortlessly smooth and unstressed treble performance. It is driven by a massive neodymium magnet assembly incorporating a vented rear chamber, cleverly shifting low-frequency resonance well below the crossover region. This allows for a remarkably low crossover point of 750Hz, ensuring the most organic vocal rendition imaginable. Furthermore, the low-frequency section utilises a bespoke multi-fibre paper cone and signature FyneFlute™ surround technology, guaranteeing supremely clean transient behaviour and cohesive driver integration even at concert-level volumes.

BassTrax Tractrix Diffuser: Perfecting Low-Frequency Integration

Delivering profound and incredibly articulate bass, the F1 Series proudly integrates the ultimate iteration of Fyne Audio’s patented BassTrax™ Tractrix profile low-frequency diffuser system. This highly sophisticated approach to bass loading utilises a brilliantly engineered twin-cavity cabinet design. It features a custom-tuned waveguide port that fires directly downwards from the heavily reinforced lower panel of the internal enclosure. This advanced loading technique broadens the tuning frequency to dramatically reduce cone excursion, acting as an exceptionally effective internal damping system that aggressively blocks potential standing-wave resonances.

As the lower cavity bass port vents downwards, the acoustic energy strikes the precision-engineered BassTrax Tractrix profile diffuser. This mathematically derived, cone-shaped diffuser seamlessly converts plain-wave low-frequency energy into a horizontally expanding, 360-degree spherical wavefront without any loss of total acoustic power. Originally conceptualised for horn loudspeakers in the 1920s, the modern application of this profile to a downward-firing diffuser is entirely unique to Fyne Audio. The glorious result is exceptionally uniform, omnidirectional bass integration, making these loudspeakers astonishingly forgiving of room placement.

Audiophile Crossovers and Deep Cryogenic Treatment

To ensure flawless synergy between components, the F1 Series crossover is an uncompromising masterpiece, painstakingly hand-built onto vibration-damping fibreboard panels. Fyne Audio’s acoustic engineers meticulously refined the component roster through rigorous finite element analysis, advanced computer modelling, and thousands of hours of critical auditioning. The resulting network exclusively utilises the world’s finest electronic elements, including low-loss laminated core inductors, high-precision non-inductive thick film resistors, and ClarityCap’s absolute highest-grade polypropylene capacitors.

Internal signal transfer is entrusted to highly transparent Neotech™ PC-OCC wiring, connecting to the amplifier via ultra-premium WBT Nextgen™ gold-plated bi-wire terminals. To extract absolute peak performance, every fully assembled crossover undergoes a rigorous Deep Cryogenic Treatment. This specialised super-freezing and slow-thawing process successfully relieves micro-stresses within delicate components and solder joints, vastly maximising signal transfer. Further refinements include a dedicated fifth earth terminal to ground the driver chassis, preventing radio frequency interference, alongside precisely calibrated front-baffle controls allowing users to subtly adjust high-frequency energy to match their specific acoustic environment.
